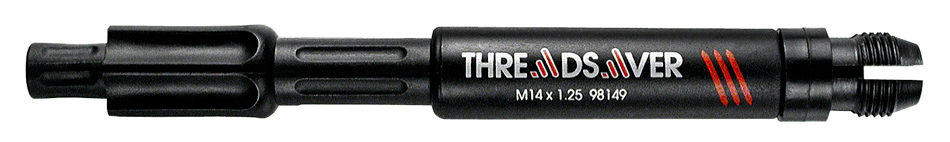

The ThreadSaver Tool
What is the ThreadSaver Tool?
The ThreadSaver
is an Australian made tool and does what it's name implies... it saves
threads.
This unique tool was designed for one purpose and that is to clean
or repair damaged spark plug port hole threads.
The ThreadSaver
Tool is 16 cms / 6 inches in length.
The ThreadSaver
comes in two sizes, for the most popular range of spark plugs, 12mm and 14mm
and is suitable for plain or tapered plug seat types. All the technician
needs to use it is a 5/8" spark plug socket or spanner.
ThreadSaver will
save you time and money.
If you change sparkplugs regularly - you
need the amazing ThreadSaver.
How does ThreadSaver work?
The ThreadSaver is a
collapsible tap with a centre rod that enables the user to regulate the
amount of pressure at the thread cutting end of the tool. It enables the
user to adjust the cutting depth of the thread by simply pushing the rod
toward the cutting head to increase depth or retracting the rod to reduce
cutting depth.
To start the operation, the expanding rod is removed. This allows the
collapsible tap end to be inserted into the spark plug port hole. Bearing in
mind this unique tool cleans or cuts the thread on the way out. With the
collapsible tap end, the tool is inserted past the damaged or contaminated
spark plug thread. The expanding rod is replaced through the centre of the
ThreadSaver tool and now comes the best part, the ThreadSaver is wound out
cleaning or repairing and realigning the thread and with the help of a
little grease on the tap end, metal and carbon particles are brought out
through the spark plug port hole along with the ThreadSaver tool.
The ThreadSaver is a cheap investment, is simple, and is fast and easy to
use. It will go a long way in assisting to reduce lost labor time on a
fairly common workshop problem when replacing spark plugs.
A tool that every technician should have, ThreadSaver works on cast iron and
alloy cylinder heads, can be used on cars, trucks, motor cycles, marine,
lawn mowers, chainsaws or anything that uses a 12mm or 14 mm spark plug.
Use hand torque only when using ThreadSaver. If the tool
becomes jammed, simply withdraw the expander rod until action can be resumed
again.
ThreadSaver is a
collapsible tap. When the centre expanding rod is removed, the threaded tap
end is installed past the damaged threads into the spark plug port hole and
aligned on good threads. The expanding rod is replaced and Threadsaver is
wound out cleaning, repairing and re-aligning the threads. The metal and
carbon is brought out through the port hole.
ThreadSaver is suitable for
both a plain and tapered seat.
The ThreadSaver
is a 100% Australian made and owned tool.
ThreadSaver Facts
---
Repairs & re-starts crossed threads
--- Inexpensive investment
--- Cleans threads
--- Simple, fast and easy to use for anybody who changes spark plugs
--- For use with all 12mm & 14mm spark plugs
--- Saves time & money
--- Works on cast iron and alloy cylinder heads
--- Used on cars, trucks, motorcycles, generators, marine, lawn mowers,
tractors, chainsaws, small engines
--- Australian made & owned
--- 5/8" spark plug socket or spanner is the only tool needed
--- Unique patented tools
If you change sparkplugs regularly - you
need the amazing ThreadSaver.
|
